Air ride.Kompressor 98C.1st. Krom
130psi
- Artnr: AIR.50-98C
- I lager:0
- Vikt, kg: 5
Beskrivning av artikel

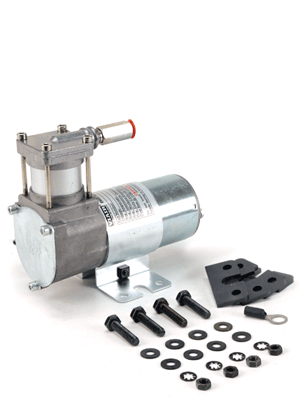

VIAIR’s 90 Series compressors offer a light duty solution for smaller air requirements and are designed to fill no larger than a 1.0 gallon air tank. Multiple duty cycles, mounting, compressor finish, and intake options are available depending on model.
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 10% @ 100 PSI |
| – Max. Working Pressure: 130 PSI |
| – Max. Air Tank Size: 1.0 Gallon |
| – Max. 12V Amp Draw: 12 Amps |
| – Ingress Protection Rating: IP54 |
| – Dimensions: 5.6″L x 3.1″W x 4.7″H |
| – Net Weight: 2.55 lbs. |
FILL RATES
| 0.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 50 sec. (± 05 sec.) |
| 85 to 105 PSI | 15 sec. (± 03 sec.) |
| 0 to 120 PSI | 1 min. 05 sec. (± 05 sec.) |
| 90 to 120 PSI | 21 sec. (± 03 sec.) |
| 1.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 40 sec. (± 10 sec.) |
| 85 to 105 PSI | 30 sec. (± 05 sec.) |
| 0 to 120 PSI | 2 min. 10 sec. (± 10 sec.) |
| 90 to 120 PSI | 45 sec. (± 05 sec.) |
